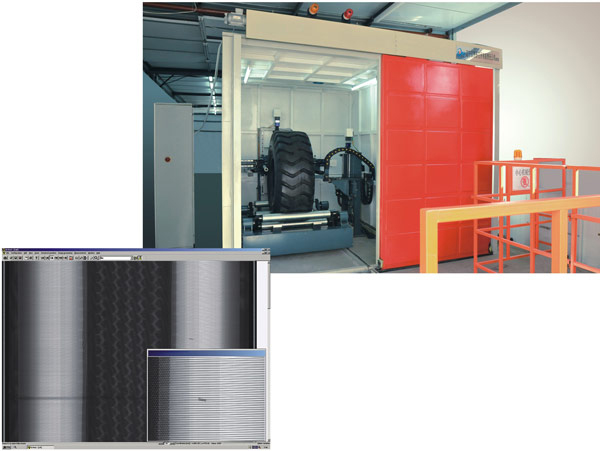

全自动X射线工程车轮胎检测系统

X-ray inspection system for OTR tire

系统简介：

Brief introduction

    全自动X射线工程车轮胎检测系统是工程车轮胎专用检测设备。该系统由高频高压X射线系统、数字成像系统、机械运动系统、电气控制系统、X射线防护系统、视频监视系统等组成。

The system is designed for OTR tire. It includes high frequency and voltage X-ray system, digital imaging system, mechanical motion system, tire identifying system, control system, X-ray protection system, video monitor system and so on.

系统特点：

Characteristic

■高精密机械运动系统，使轮胎在检测过程中具有较高的定位精度和速度控制，从而保证得到最好的图像质量。

The tire can be controlled accurately during the inspection cycle due to the high precision motion mechanism. It can offer an excellent image.
■采用 CMOS线性探测器，动态范围 12 bit。

CMOS detector with dynamic range 12bit
■图像分辨率 1mm ,具有全屏滚动显示功能。

Full-screen scrolling image with resolution 1mm

■采用移动的小车将轮胎自动送入铅房，轮胎在小车上直接旋转检测的方式，从而避免了在铅房内用吊车起吊轮胎而损伤设备和人员的风险。

The tire can be placed at its inspecting position automatically by the moving loader, which avoids the risk caused by using the hoisting machine in the lead cabin.

检测范围:

Inspection range

■轮胎外径：1210-4500㎜

Outside diameter: 1210-4500mm

■轮胎内径：24-63〞

Inside diameter: 24-63”

■断面宽：300-1500㎜

Overall width: 300-1500mm

■轮胎重量：最大5000kg

Weight: Max. 5000kg
